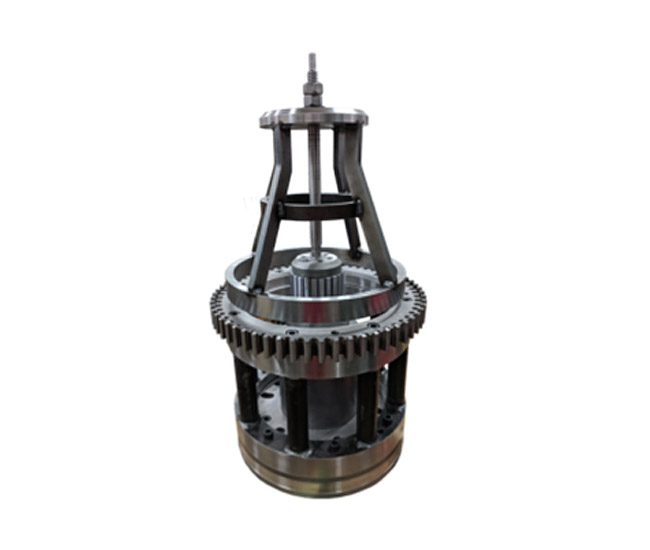

Gear Fixtures

With over 22 years of Gear manufacturing ,process design and Fixture design experience and build gear fixtures, the shortest lead time in the industry, and a history of solving difficult work holding issues, MAXWIN is your solution for gear work holding.

provides the variety of solutions for your gear manufacturing needs.
We are regularly design and build complete gear production packages, including:
Flexible fixture and additional components.
Part Holding-Work holding fixtures.
Part Loading- Griper jaws , Loader plug .
Cutter Holding-Hob Arbor & cutter adapter.

We designs the hob fixtures to hold gear blanks securely, while the hob cutter generates the OD gear tooth profile. Gear grinding fixtures hold the gears during the finish tooth grinding OD gear profiles.
Maxwin Hob & grind fixture design focus on.

Meeting the needs of each individual customer application.
Rigidity, repeatability and specific tolerance.
Addressing a family of part sizes with minimal change over components.

Shaping Fixture: Shaping fixture hold gear blank for ID profile tooth cutting and for OD profiles that cannot be hobbed due to gears configuration ,Machine or cutter availability.

Shaving Mandrel : Shaving operation very important operation in gear manufacturing because all performance of gear depends open the shaving gear accuracies ,any error lead to noise in transmission so fixture role very important in shaving inaccuracies in fixture impact over profile accuracies.

Gear Fixtures

Gear Fixtures
